Embossing Machine For Cards steel door making machine in China
Essential details
| Machine Type:Steel wood door embossing machine | Return Force (kN):250000 kN |
| System:Normal | Condition:New |
| Place of Origin:China | Brand Name:Kewosen |
| Weight (T):30 T | Motor Power (kw):22 kw |
| Key Selling Points:Automatic | Warranty:1 Year |
| Marketing Type:New Product | Machinery Test Report:Provided |
| Video outgoing-inspection:Provided | Warranty of core components:1 Year |
| Core Components:Bearing, Motor, Pump, Pressure vessel | Power Source:Hydraulic |
| After sale service:Engineers available to service overseas | Type:Single Columns |
| Color:Customized | Controlsystem:PLC |
| Certification:CE |
Packaging & delivery
Packaging Details
1.press machine surface with anti-rust treatment,
2.machine inner layer of plastic waterproof packaging,
3.The outer layer of thick wood or steel frame fixed,And then use a synthetic board package.
Combined container transport, or separate container transport.
Lead time:
| Quantity(sets) | 0 - 1 | >1 |
| Lead time (days) | 45 | To be negotiated |

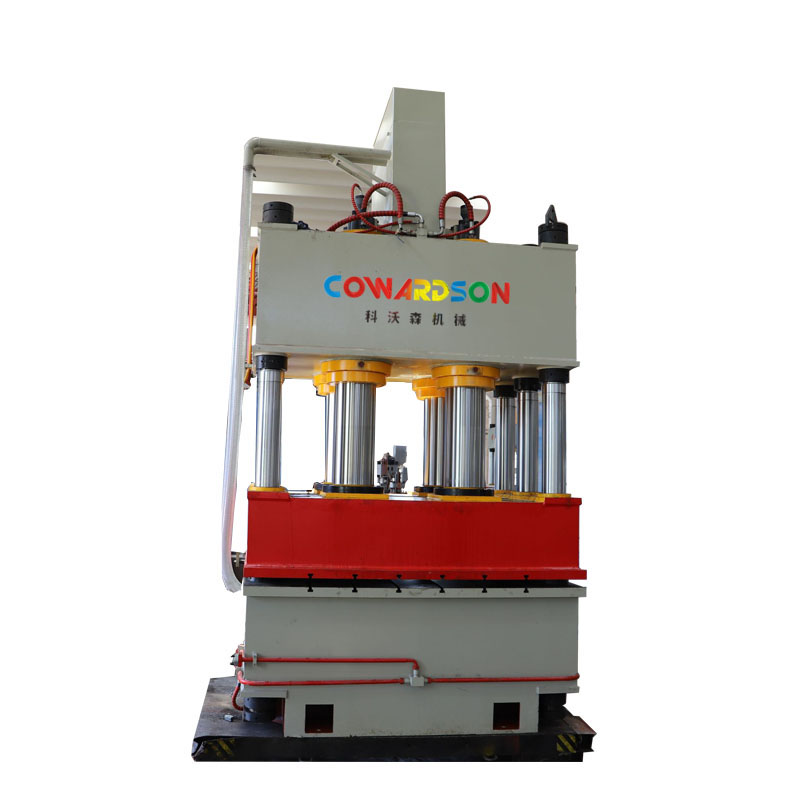

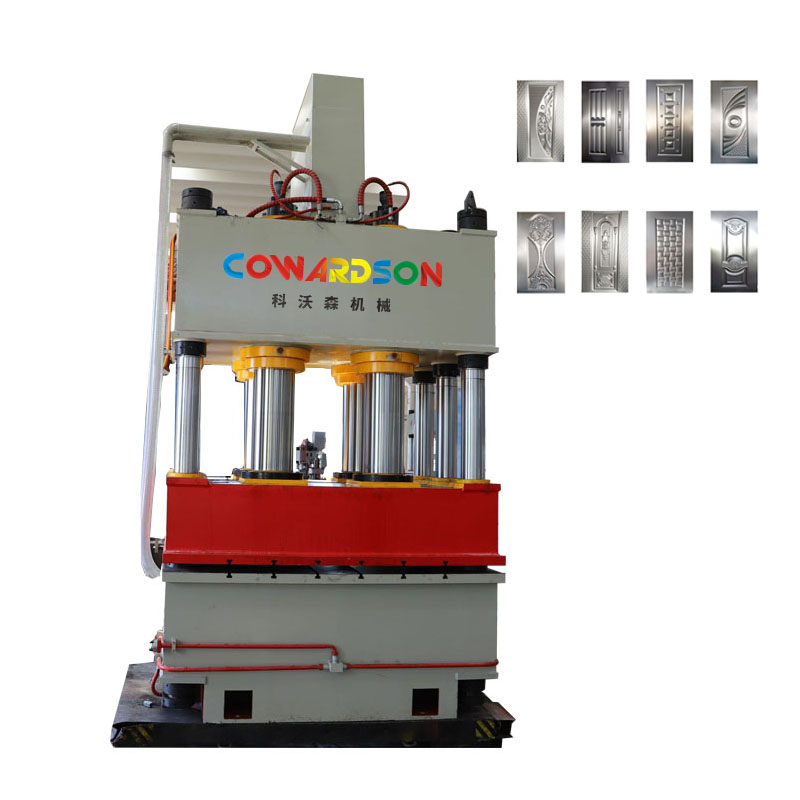

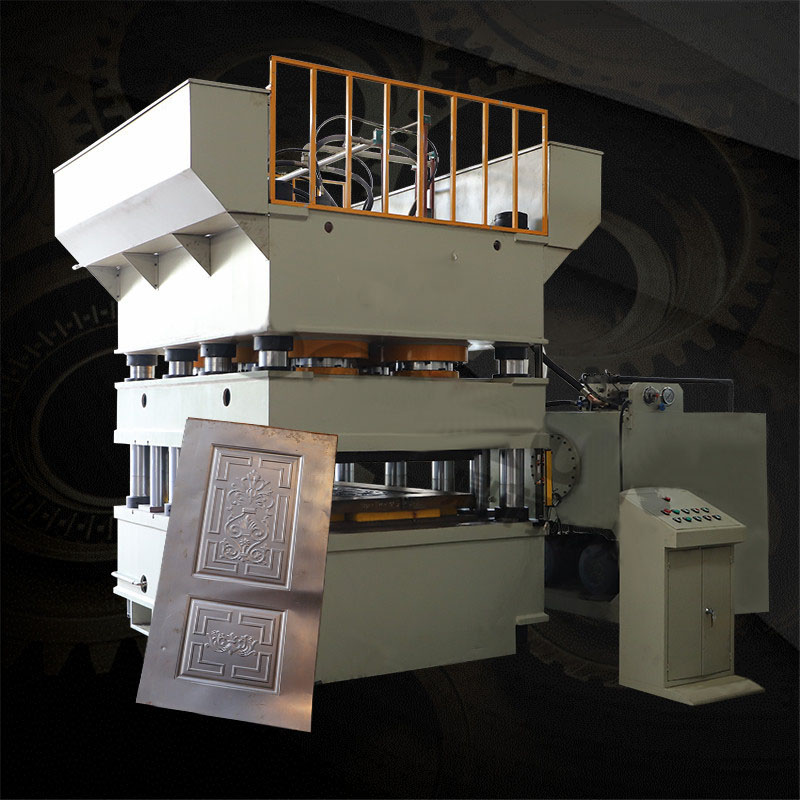

Embossing press machine
Description
Product Advantages
1. With PLC controlling + touching screen.
2. With excellent quality hydraulic station, good pumps, good water cooling system.
good hydraulic oil filtering system, good motors.
3. Strong frames, with several ram guiding.
4. Available working pressure, speed and stroke settings.
5.The filling tank is placed in the middle for higher safety factor
Application Fields
- Applicable Industries:Building Material Shops, Machinery Repair Shops, Retail
Specification
| Project | 2500 T | 3000T | 3600 T | 4500T | 5000 T | 6000T |
| Normal Force ( KN ) | 24000 | 30000 | 36000 | 45000 | 50000 | 60000 |
| Return force ( KN ) | 630x2 | 630x2 | 630x2 | 630x2 | 630x2 | 1000x2 |
| Stroke ( mm ) | 400 | 400 | 400 | 400 | 400 | 400 |
| Return stroke ( mm ) | 450 | 450 | 450 | 450 | 450 | 450 |
| Opening height ( mm ) | 500 | 500 | 500 | 500 | 500 | 500 |
| Descend speed ( mm/s ) | 120 | 150 | 150 | 150 | 150 | 150 |
| Working speed （mm / S） | 5--10 | 5--10 | 5--10 | 5--10 | 5--10 | 5--10 |
| Return Speed ( mm/s ) | 80 | 80 | 80 | 80 | 80 | 80 |
| Table Size ( mm) | 1500x2500 | 1500x2500 | 1500x2500 | 1580x2550 | 1900x3000 | 2200x3500 |
| Motor Power ( KW) | 22x2 | 22x2 | 32 | 30x2 | 22x3 | 30x3 |
