Reasonable price salt block hydraulic press machine in China
Essential details
| Machine Type:salt block press machine | Return Force (kN):5000 kN |
| System:Normal | Condition:New |
| Place of Origin:China | Brand Name:Kewosen |
| Weight (T):12 T | Motor Power (kw):22 kw |
| Key Selling Points:Automatic | Warranty:1 Year |
| Marketing Type:New Product | Machinery Test Report:Provided |
| Video outgoing-inspection:Provided | Warranty of core components:1 Year |
| Core Components:Bearing, Motor, Pump, Pressure vessel | Power Source:Hydraulic |
| After sale service:Engineers available to service overseas | Type:Single Columns |
| Color:Customized | Controlsystem:PLC |
| Certification:CE |
Packaging & delivery
Packaging Details
1.press machine surface with anti-rust treatment,
2.machine inner layer of plastic waterproof packaging,
3.The outer layer of thick wood or steel frame fixed,And then use a synthetic board package.
Combined container transport, or separate container transport.
Lead time:
| Quantity(sets) | 0 - 1 | >1 |
| Lead time (days) | 45 | To be negotiated |

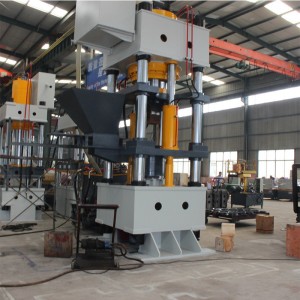

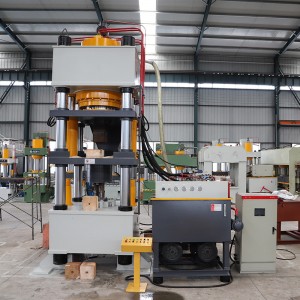

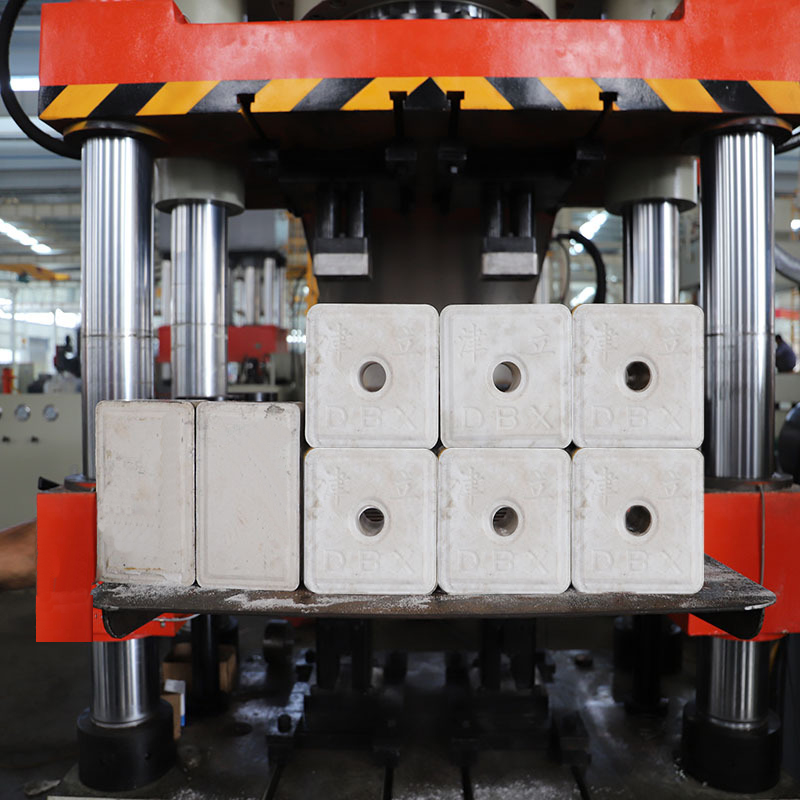

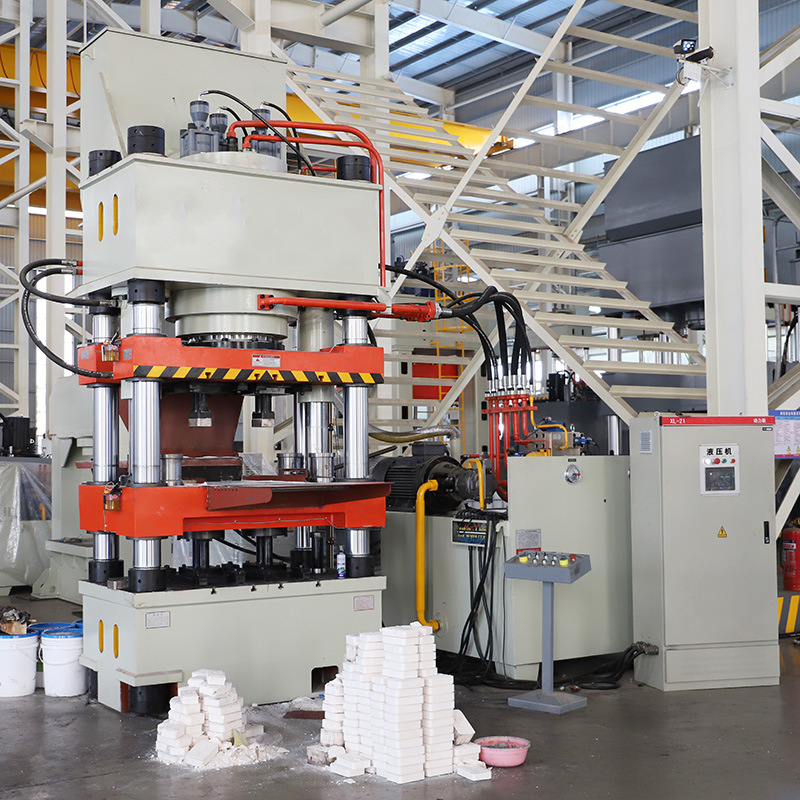

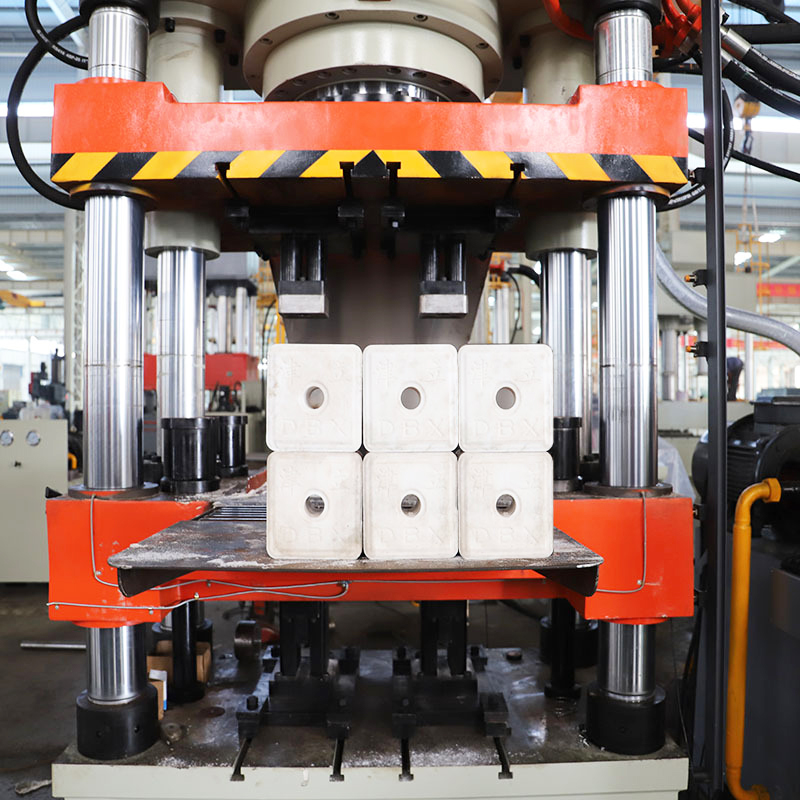

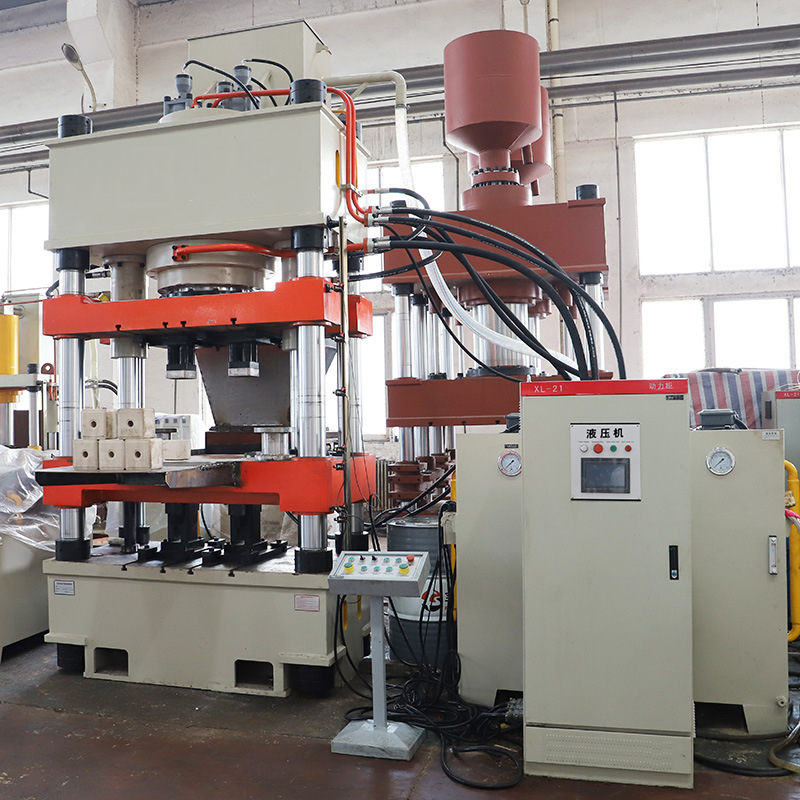

Salt block press machine
Description
Product Advantages
Salt brick forming hydraulic press Is a multi-function hydraulic press, also known as the three beams four-column hydraulic press,
1.fuselage adopt three beam four column structure, economical and practical, the hydraulic control USES the cartridge valve integrated system, reduce the leak point, reliable operation, long service life, which can realize constant pressure and range is two kinds of forming process, have confirmed when rolling function,
2.working pressure stroke can be adjusted within the prescribed scope, USES the centralized control buttons, which can realize three kinds of manual, semiautomatic, automatic operation mode.
Application Fields
Applicable Industries:Food & Beverage Shops, Manufacturing Plant, Food & Beverage Factory, Food Shop, Restaurant, Printing Shops, Retail, Energy & Mining
Specification
| project | 315t | 400t | 500t-A | 630t-A | 800t | 1000t |
| Effective stroke of master cylinder mm | 500 | 500 | 500 | 500 | 600 | 600 |
| Maximum opening height mm | 1260 | 1400 | 1400 | 1400 | 1600 | 1600 |
| Effective area of worktable mm * mm | 1000*1000 | 1000*800 | 1000*900 | 1200*900 | 1400*1200 | 1500*1300 |
| Idle descent speed mm / S | 250 | 340 | 300 | 340 | 340 | 350 |
| Pressing speed mm / S | 10-20 | 16-24 | 16-24 | 16-24 | 16-24 | 10月20日 |
| Return speed mm / S | 130 | 220 | 210 | 230 | 260 | 240 |
| Motor power kw | 22 | 22*2 | 22*2 | 30*2 | 37*2 | 45*2 |
| Demoulding force t | 30*2 | 63*2 | 80*2 | 80*2 | 125*2 | 150*2 |
| Demoulding stroke mm | 400 | 320 | 320 | 320 | 400 | 400 |
| Weight t | 10T | 16T | 12T | 17T | 28T | 33T |
| Pressed product specification | 3kg | 5kg | 10kg | 5kg one time two piece | 20kg | 25kg |
