Deep drawing press machine deep drawing hydraulic press hot sale

Short Description:

Deep drawing  hydraulic press is also known as deep drawing  machine, from the fuselage structure is divided into four column sheet stretching hydraulic press, frame type sheet stretching hydraulic press two; From the tensile principle, it can be divided into two kinds: single action sheet stretching hydraulic press and double action sheet stretching hydraulic press

Product Detail

Product Tags


Essential details


Machine Type: deep drawing hydraulic press machineReturn Force (kN):3150 kN
Place of Origin:ChinaBrand Name:Kewosen
Weight (T):11 TMotor Power (kw):22  kw
Key Selling Points:MultifunctionalWarranty:1 Year
Marketing Type:New ProductMachinery Test Report:Provided
Video outgoing-inspection:ProvidedWarranty of core components:1 Year
Core Components:Bearing, Motor, Pump, Pressure vesselPower Source:Hydraulic
After sale service:Engineers available to service overseasType:Single Columns

Packaging & delivery

Packaging Details

1.press machine surface with anti-rust treatment,
2.machine inner layer of plastic waterproof packaging,
3.The outer layer of thick wood or steel frame fixed,And then use a synthetic board package.
Combined container transport, or separate container transport.

Lead time:

Quantity(sets)0 - 1>1
Lead time (days)45To be negotiated

deep drawing press machine

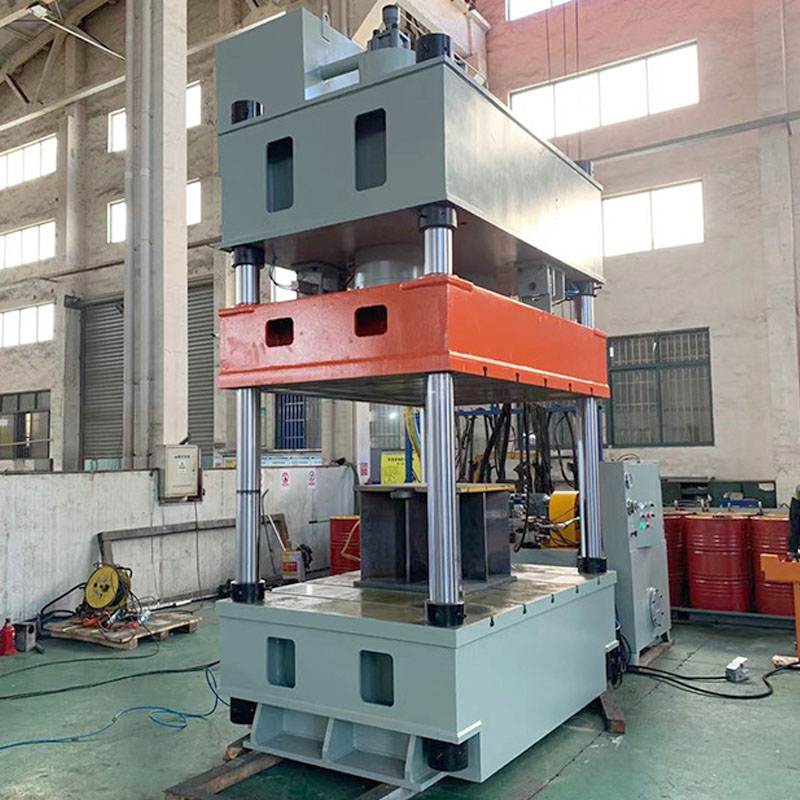

drawing hydraulic press
deep drawing press

Product Advantages

1. With PLC controlling + touching screen.
2. With excellent quality hydraulic station, good pumps, good water cooling system.
good hydraulic oil filtering system, good motors
3. Strong frames, with several ram guiding.
4. Available working pressure, speed and stroke settings.
5.The filling tank is placed in the middle for higher safety factor

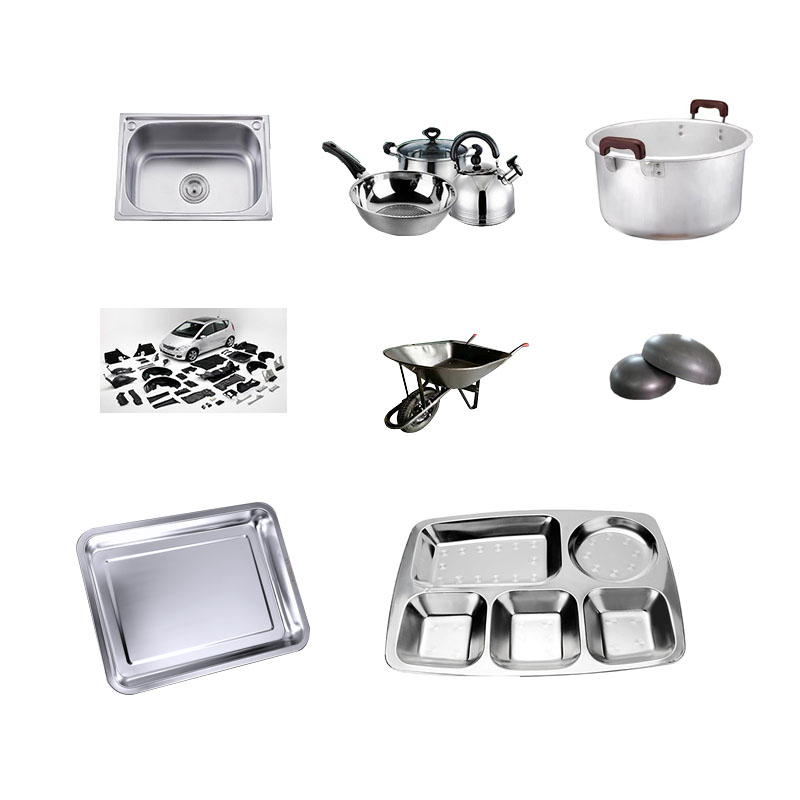

Application Fields

Deep drawing  hydraulic press can also be used for straightening, pressing, packing, pressing block and pressing plate. Can also be used for shaft parts of the pressing process, profile calibration, clamping, pressing process and plate parts of bending, debate, shape, stamping, sleeve type, stretching, plastic material pressing process, such as stamping, bending, flanging thin stretching and other operations, can also be engaged in calibration, pressing, plastic products and powder products of the pressing and forming operations.



Slider stroke (mm)500600800
Maximum opening height (mm)90010001250
Table size (mm)800X8001000X10001260X1200
Down speed of empty range (mm / S)80100100
Working speed (mm / S)6 - 126 - 126 - 15
Return speed (mm / S)606080
Motor power( kw)151522
Oil pump displacement (ml / R)636380
Jacking force (t)636363
Ejection stroke (mm)250250250
Approximate weight (t)5.8811

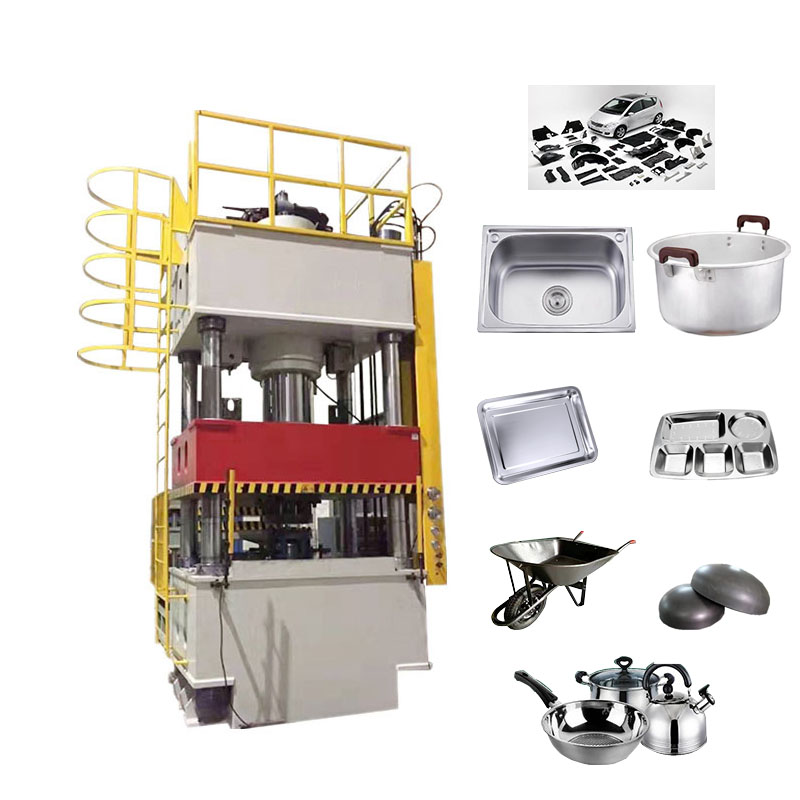

deep drawing press for sale
