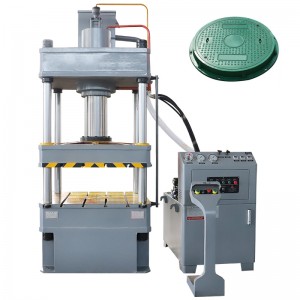

Manhole cover hydraulic press machine manhole cover machine made in China
Essential details
| System:Normal | Condition:New |
| Place of Origin:China | Brand Name:Kewosen |
| Weight (T):13 T | Motor Power (kw):11 kw |
| Key Selling Points:Multifunctional | Warranty:1 Year |
| Marketing Type:New Product | Machinery Test Report:Provided |
| Video outgoing-inspection:Provided | Warranty of core components:1 Year |
| Core Components:Bearing, Motor, Pump, Pressure vessel | Power Source:Hydraulic |
| After sale service:Engineers available to service overseas | Type:Single Columns |
| Color:Customized | Controlsystem:PLC |
| Certification:CE |
Packaging & delivery
Packaging Details
1.press machine surface with anti-rust treatment,
2.machine inner layer of plastic waterproof packaging,
3.The outer layer of thick wood or steel frame fixed,And then use a synthetic board package.
Combined container transport, or separate container transport.
Lead time:
| Quantity(sets) | 0 - 1 | >1 |
| Lead time (days) | 45 | To be negotiated |
Manhole cover hydraulic press machine
Description
Product Advantages
1. With PLC controlling + touching screen.
2. With excellent quality hydraulic station, good pumps, good water cooling system.
good hydraulic oil filtering system, good motors
3. Strong frames, with several ram guiding.
4. Available working pressure, speed and stroke settings.
5.The filling tank is placed in the middle for higher safety factor
Application Fields
- Applicable Industries:Farms, Manufacturing Plant, Construction works
Specification
| Project | 315t-A | 315t-B | 315t-C |
| Slider stroke （mm） | 500 | 600 | 800 |
| Maximum opening height （mm） | 900 | 1000 | 1250 |
| Table size （mm） | 800X800 | 1000X1000 | 1260X1200 |
| Down speed of empty range （mm / S） | 80 | 100 | 100 |
| Working speed （mm / S） | 6 - 12 | 6 - 12 | 6 - 15 |
| Return speed （mm / S) | 60 | 60 | 80 |
| Motor power（ kw） | 15 | 15 | 22 |
| Oil pump displacement (ml / R) | 63 | 63 | 80 |
| Jacking force (t) | 63 | 63 | 63 |
| Ejection stroke (mm) | 250 | 250 | 250 |
| Approximate weight (t) | 5.8 | 8 | 11 |
