Water tank hydraulic press made in China stainless steel water tank press machine
Essential details
| Machine Type:Water tank hydraulic press | Return Force (kN):3150 kN |
| System:Normal | Condition:New |
| Place of Origin:China | Brand Name:Kewosen |
| Weight (T):13 T | Motor Power (kw):37 kw |
| Key Selling Points:High accuracy | Warranty:1 Year |
| Marketing Type:New Product | Machinery Test Report:Provided |
| Video outgoing-inspection:Provided | Warranty of core components:1 Year |
| Core Components:Bearing, Motor, Pump, Pressure vessel | Power Source:Hydraulic |
| After sale service:Engineers available to service overseas | Type:Single Columns |
| Color:Customized | Controlsystem:PLC |
| Certification:CE |
Packaging & delivery
Packaging Details
1.press machine surface with anti-rust treatment,
2.machine inner layer of plastic waterproof packaging,
3.The outer layer of thick wood or steel frame fixed,And then use a synthetic board package.
Combined container transport, or separate container transport.
Lead time:
| Quantity(sets) | 0 - 1 | >1 |
| Lead time (days) | 45 | To be negotiated |

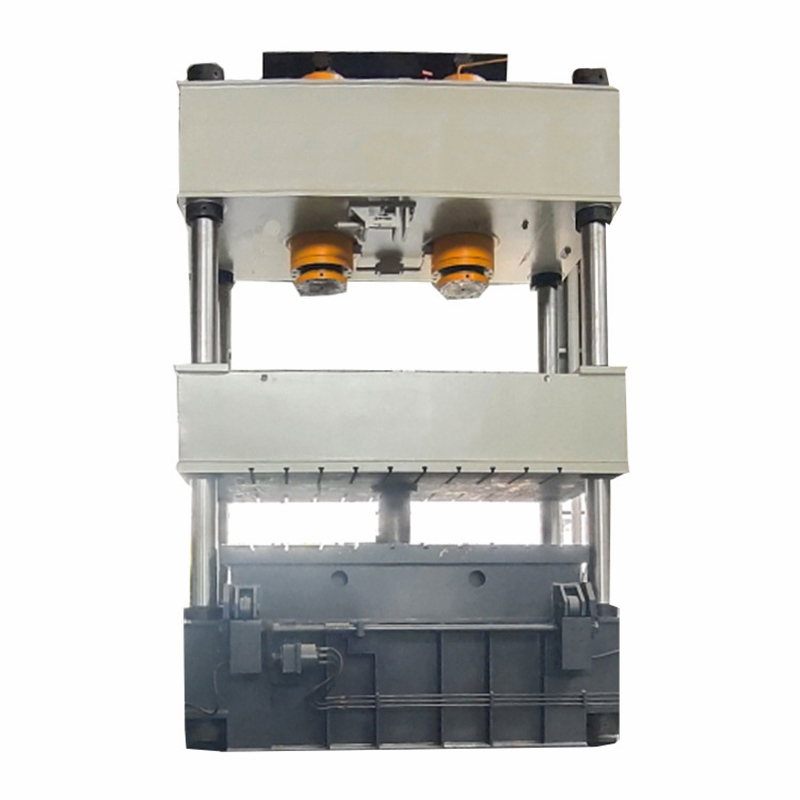

315T water tank hydraulic press
Description
Product Advantages
1.Water tank press machine frame design through the finite element design, with high rigidity, high precision
2.Workbench can move up and down, greatly expand the machine opening and closing height, more convenient to use
3.The worktable is welded with high quality steel plate to ensure reliability and durability
Specification
| Project | 315T | 400T | 500T |
| Slider stroke （mm） | 600 | 800 | 600 |
| Maximum opening height （mm） | 1000 | 1250 | 1000 |
| Table size （mm） | 1000X1000 | 1260X1200 | 1500X1500 |
| Down speed of empty range （mm / S） | 100 | 100 | 120 |
| Working speed （mm / S） | 6 - 12 | 6 - 15 | 6 - 15 |
| Return speed （mm / S) | 60 | 80 | 80 |
| Motor power（ kw） | 15 | 22 | 18.5*2 |
| Oil pump displacement (ml / R) | 63 | 80 | 63*2 |
| Jacking force (t) | 63 | 63 | 100 |
| Ejection stroke (mm) | 250 | 250 | 300 |
| Approximate weight (t) | 8 | 11 | 19 |
Application Fields

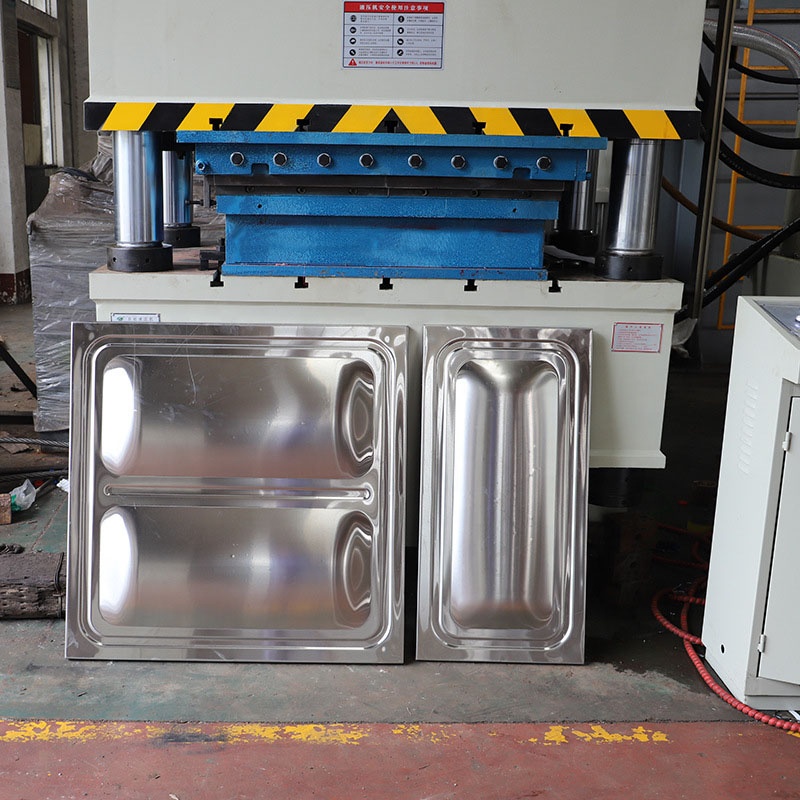

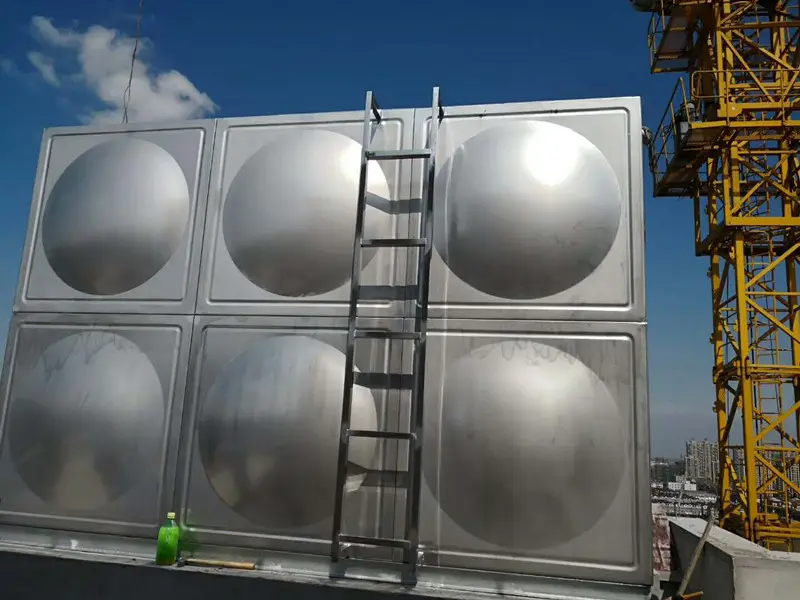

Water tank hydraulic press can be used in the automotive industry to produce automotive parts, household products, such as stainless steel water tank, automotive water tank cover plate and other workpiece
Details
Certificates
