300 ton four columns press hydraulic press machine high speed
Essential details
| Machine Type:300 ton Four-column Three-beam Hydraulic Press | Return Force (kN):3000 kN |
| System:Normal | Condition:New |
| Weight (T):12 T | Motor Power (kw):22 kw |
| Voltage:380V/220V/Optional | Dimension(L*W*H):Customized Size |
| Place of Origin:China | Brand Name: Cowardson |
| Video outgoing-inspection:Provided | Warranty of core components:1 Year |
| Marketing Type:Ordinary Product | Machinery Test Report:Provided |
| Key Selling Points:Multifunctional | Warranty:1 Year |
| Core Components:Bearing, Motor, Pump, Pressure vessel | Power Source:Hydraulic |
| After sale service:Engineers available to service overseas | Type:Four Columns |
| Material:45# Steel Material | Model:YQ32-400 ton |
| Color:Customized | Controlsystem:PLC |
| Certification:CE |
Packaging & delivery
Packaging Details
1.press machine surface with anti-rust treatment,
2.machine inner layer of plastic waterproof packaging,
3.The outer layer of thick wood or steel frame fixed,And then use a synthetic board package.
Combined container transport, or separate container transport.
Lead time:
| Quantity(sets) | 0 - 1 | >1 |
| Lead time (days) | 45 | To be negotiated |

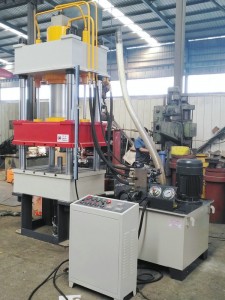

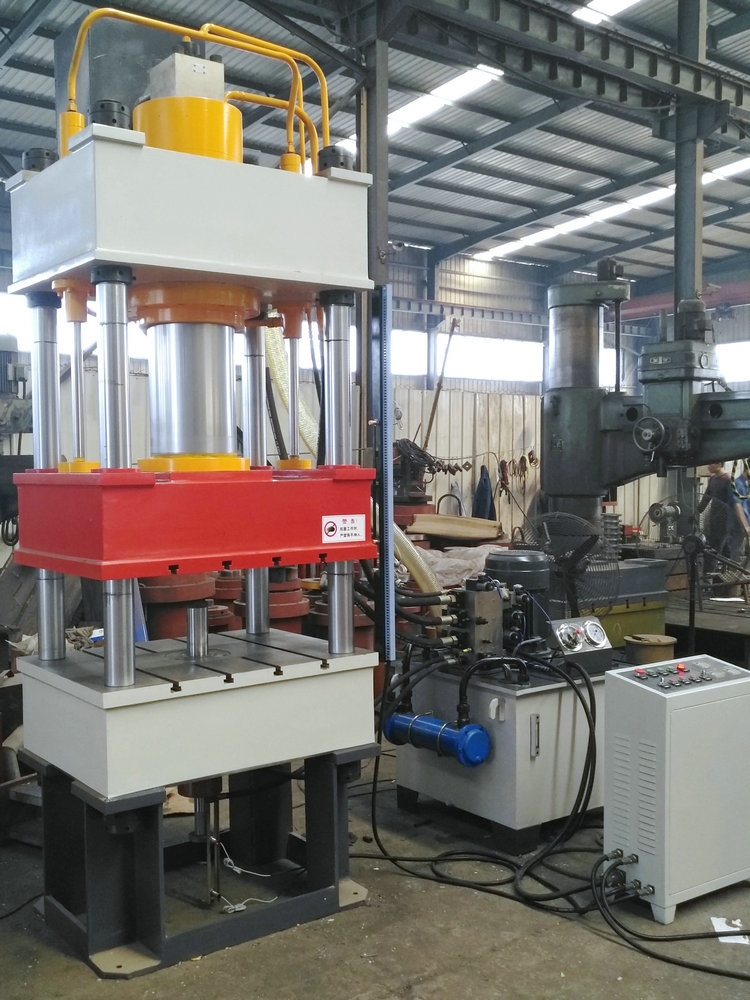

300T Four-column Three-beam Hydraulic Press
Description
Product Advantages
1.300 ton Four Column Hydraulic press for stainless steel, Economical and Practical, Hydraulic control adopts to insert set valve intergrated system,decrease let out point.
2.Movement reliability,durable and long life span.
3.Can realization manual,Semi-automatic,automatic 3 operate form.
Application Fields
Applicable Industries:Farms, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Restaurant, Home Use, Energy & Mining, Construction works and etc
Hydraulic Press Machine 400 Ton With Hydraulic Cushion For Stretching, such as stamping, bending, flanging sheet stretching, and can be engaged in correction, press fit, plastic products, powder products, compression molding.
Specification
| Project | 315t-A | 315t-B | 315t-C | 315-D |
| Slider stroke （mm） | 400 | 500 | 600 | 800 |
| Down speed of empty range （mm / S） | 60 | 100 | 100 | 100 |
| Table size （mm） | 700X700 | 800X800 | 1000X1000 | 1260X1200 |
| Maximum opening height （mm） | 700 | 800 | 1000 | 1250 |
| Working speed （mm / S） | 6 - 12 | 6 - 12 | 6 - 12 | 6 - 15 |
| Jacking force (t) | 63 | 63 | 63 | 80 |
| Motor power（ kw） | 11 | 15 | 15 | 22 |
| Return speed （mm / S) | 60 | 60 | 60 | 80 |
| Ejection stroke (mm) | 250 | 250 | 300 | 300 |
Details
Certificates
