Alumina ceramic armor bulletproof plate electric hydraulic press machine
Essential details
| Machine Type:Four-column Three-beam Hydraulic Press | Return Force (kN):5000 kN |
| System:Normal | Condition:New |
| Video outgoing-inspection:Provided | Warranty of core components:1 Year |
| Place of Origin:China | Brand Name: Cowardson |
| Weight (T):11 T | Motor Power (kw):22 kw |
| Marketing Type:Ordinary Product | Machinery Test Report:Provided |
| Key Selling Points:Multifunctional | Warranty:1 Year |
| After sale service:Engineers available to service overseas | Type:Four Columns |
| Core Components:Bearing, Motor, Pump, Pressure vessel | Power Source:Hydraulic |
| Color:Customized | Controlsystem:PLC |
| Certification:CE |
Packaging & delivery
Packaging Details
1.press machine surface with anti-rust treatment,
2.machine inner layer of plastic waterproof packaging,
3.The outer layer of thick wood or steel frame fixed,And then use a synthetic board package.
Combined container transport, or separate container transport.
Lead time:
| Quantity(sets) | 0 - 1 | >1 |
| Lead time (days) | 45 | To be negotiated |

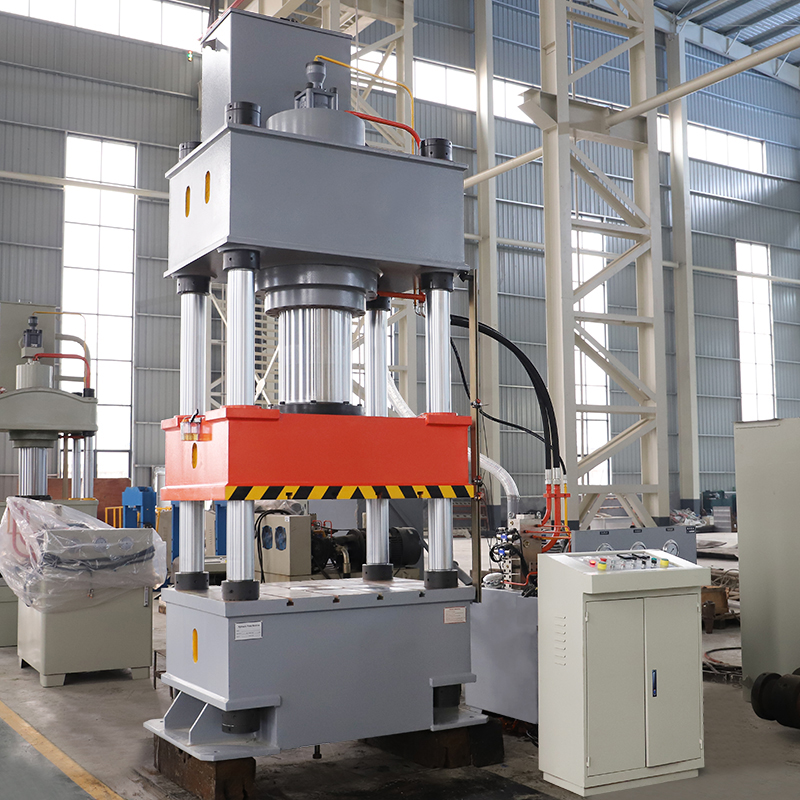

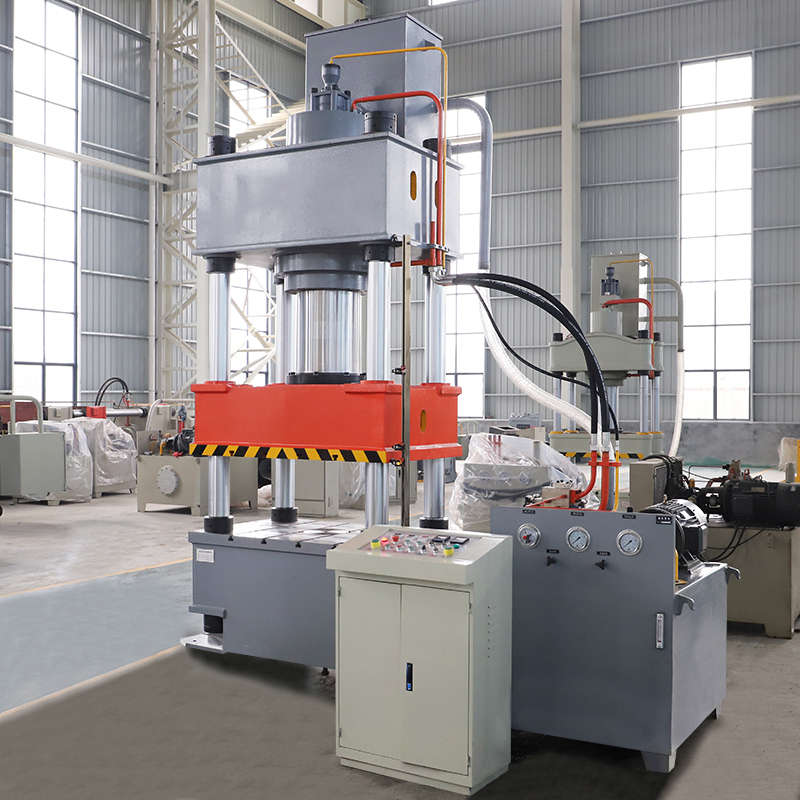

Gantry hydraulic press machine
Description
Specification
| Project | 500t-B |
| Slider stroke （mm） | 600 |
| Maximum opening height （mm） | 1000 |
| Table size （mm） | 1500X1500 |
| Down speed of empty range （mm / S） | 120 |
| Working speed （mm / S） | 6-15 |
| Return speed （mm / S) | 80 |
| Motor power（ kw） | 18.5*2 |
| Oil pump displacement (ml / R) | 63*2 |
| Jacking force (t) | 100 |
| Ejection stroke (mm) | 300 |
| Approximate weight (t) | 19 |
Details
Product Advantages
1. the machine body and the oil cylinder, the prestressed wire winding technology, so that the body and the oil cylinder work stability and anti-fatigue strength has been greatly improved. Thus, the equipment can work stably under the rated load.
2. the machine has an independent power mechanism and electrical control system, using PLC control touch screen and button two-way control with manual, semi-automatic two modes of work for choice, working pressure and speed can be adjusted.
3. the machine has pressure display device, temperature display alarm device, counting display device, pressure holding time setting device, etc. Stable working performance, good pressure retention performance, accurate delay, high degree of automation, is a more advanced composite material and sheet molding molding equipment.
Application Fields

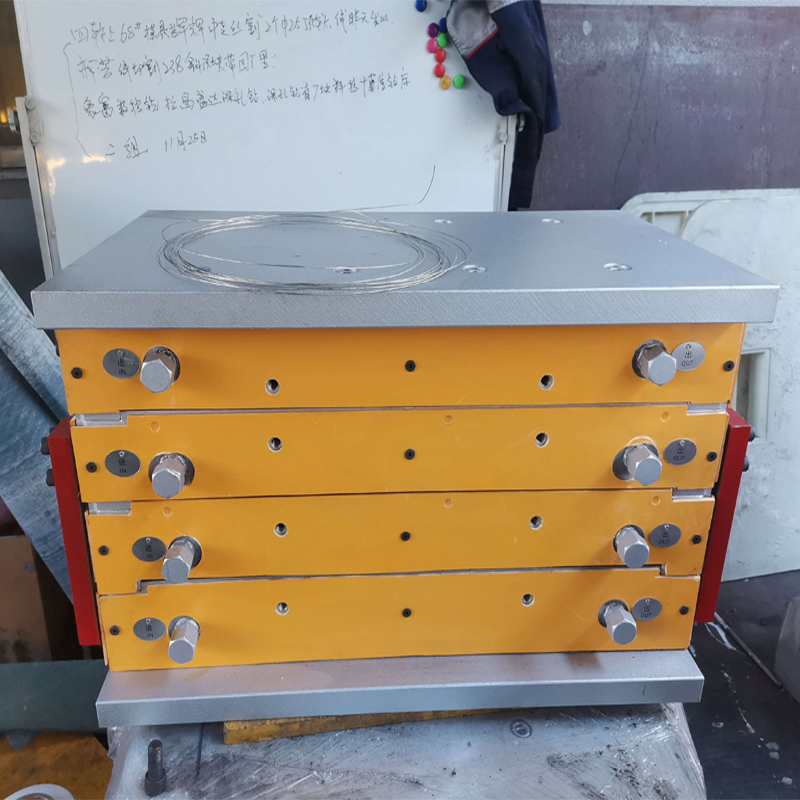

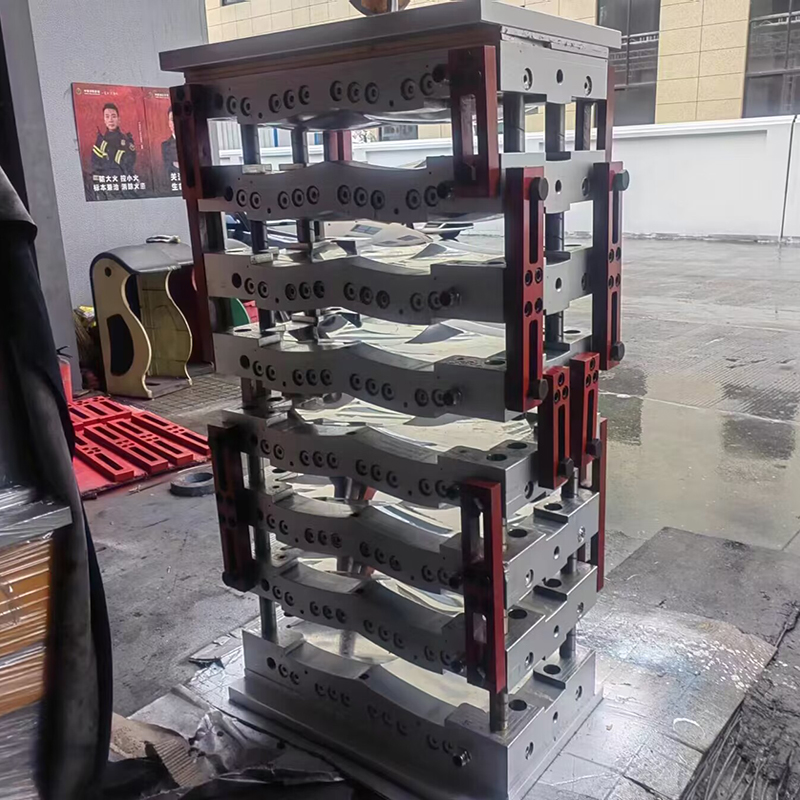

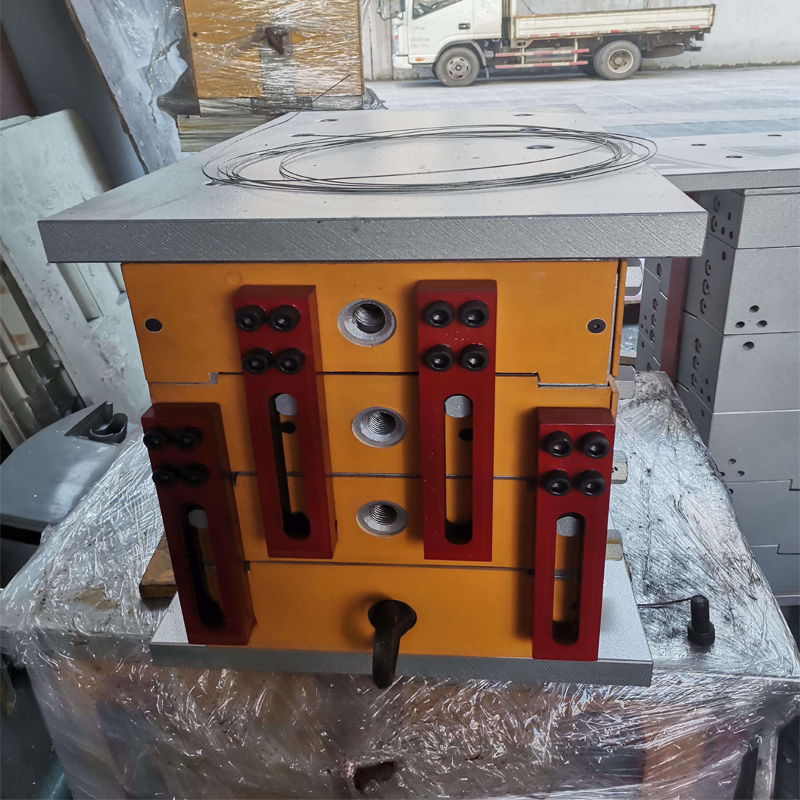

Composite bulletproof helmet molding hydraulic press is mainly used for the molding of large thin shell plates such as SMC composite materials, such as body armor fiber composite materials, can also be used for the molding of large covering parts.
