Four column hydraulic press machine high quality for sale

Short Description:

Cold squeezing molding hydraulic machine refers to the collective name of the hydraulic press that put metal blank parts under the cooperation of the mold through the cooperation of the mold, which is especially suitable for the cold extrusion and aluminum and aluminum alloy products. Squiring for molding. It has the advantages of fast speed, high production efficiency, saving raw materials.

Product Detail

Product Tags


Essential details

Machine Type:Four-column Three-beam Hydraulic PressReturn Force (kN):3150 kN
Place of Origin:Other CountryBrand Name:Kewosen
Voltage:380V/220V/OptionalDimension(L*W*H):Customized Size
Weight (T):12 TMotor Power (kw):22 kw
Key Selling Points:MultifunctionalWarranty:1 Year
Marketing Type:Ordinary ProductMachinery Test Report:Provided
Video outgoing-inspection:ProvidedWarranty of core components:1 Year
Core Components:Bearing, Motor, Pump, Pressure vesselPower Source:Hydraulic
After sale service:Engineers available to service overseasType:Four Columns
Material:45# Steel MaterialModel:YQ32-315 ton

Packaging & delivery

Packaging Details

1.press machine surface with anti-rust treatment,
2.machine inner layer of plastic waterproof packaging,
3.The outer layer of thick wood or steel frame fixed,And then use a synthetic board package.
Combined container transport, or separate container transport.

Lead time:

Quantity(sets)0 - 1>1
Lead time (days)45To be negotiated

315T Four-column Three-beam Hydraulic Press

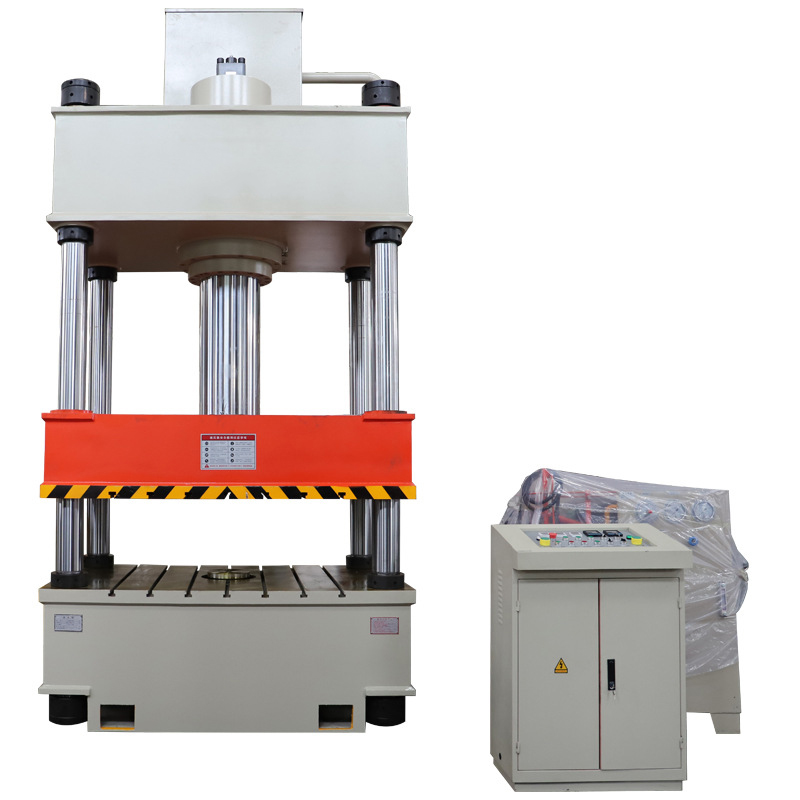

four columns hydraulic press machine

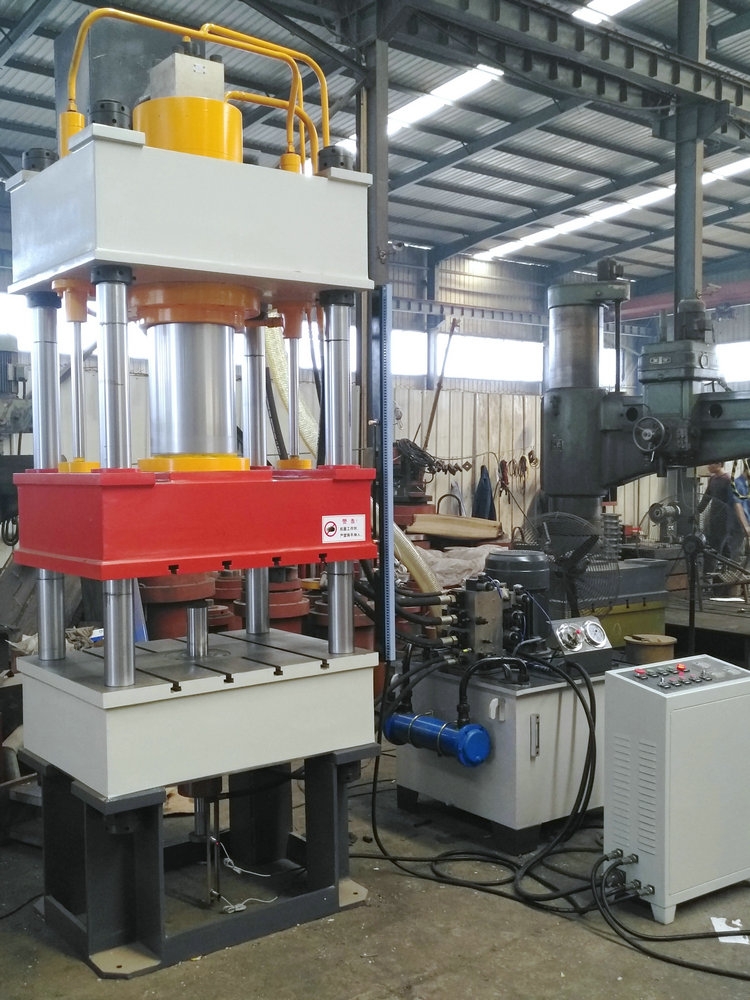

four column press machine

Product Advantages

1.315 ton Four Column Deep drawing Hydraulic press for stainless steel, Economical and Practical, Hydraulic control adopts to insert set valve intergrated system,decrease let out point.

2.Movement reliability,durable and long life span.

3.It is constant pressure to realize with calm in the first place and calm producedure two develop technology,have to insure press the function of delay time, The route of working pressure may be regulated in assigned scope, adopt buttons for centralized control.

4.Can realization manual,Semi-automatic,automatic 3 operate form.

Application Fields

Applicable Industries:Farms, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Restaurant, Home Use, Energy & Mining, Construction works

Hydraulic Press Machine 315 Ton With Hydraulic Cushion For Stretching, such as stamping, bending, flanging sheet stretching, and can be engaged in correction, press fit, plastic products, powder products, compression molding.


Max pressure of liquid ( MPa )252525
Slider stroke (mm)500600800
Maximum opening height (mm)90010001250
Table size (mm)800X8001000X10001260X1200
Down speed of empty range (mm / S)80100100
Working speed (mm / S)6 - 126 - 126 - 15
Return speed (mm / S)606080
Motor power( kw)151522
Oil pump displacement (ml / R)636380
Jacking force (t)636363
Ejection stroke (mm)250250250
Approximate weight (t)5.8811

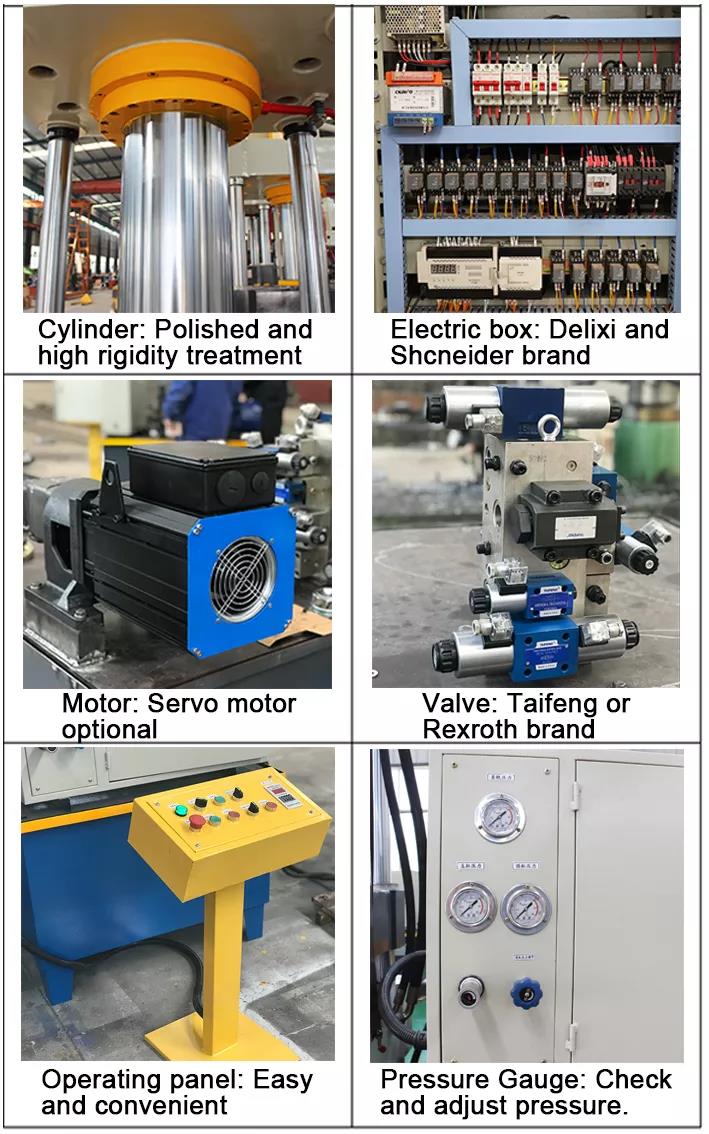

4 column hydraulic press


hydraulic press certificates
