Punching machine made in China punch press hydraulic punching machine

Short Description:

The process of cutting, punching, and stretching the raw materials between them by opening and closing the mold and the master mold is the working principle of the punching machine. Also known as a mechanical punching machine, it uses the compressed air provided by the compressed air pump to enter the cylinder through the solenoid valve, and drives the piston to the main shaft to form a downward movement of the main shaft, thereby forming an impulse, causing the workpiece to produce a specified deformation in the mold. To achieve the purpose of processing. In order to facilitate the use of customers, the electrical control part is also added to the equipment, which greatly improves the efficiency of work.

CONTACT NOW

Product Detail

Product Tags

overview

Essential details

Machine Type:Single Column Hydraulic Press	Return Force (kN):800 kN
System:Servo	Condition:New
Place of Origin:China	Brand Name:Kewosen
Weight (T):3.8 T	Motor Power (kw):7.5 kw
Key Selling Points:Energy saving	Warranty:1 Year
Marketing Type:New Product	Machinery Test Report:Provided
Video outgoing-inspection:Provided	Warranty of core components:1 Year
Core Components:Bearing, Motor, Pump, Pressure vessel	Power Source:Hydraulic
After sale service:Engineers available to service overseas	Type:Single Columns
Color:Customized	Controlsystem:PLC
Certification:CE

Packaging & delivery

Packaging Details

1.press machine surface with anti-rust treatment,
2.machine inner layer of plastic waterproof packaging,
3.The outer layer of thick wood or steel frame fixed,And then use a synthetic board package.

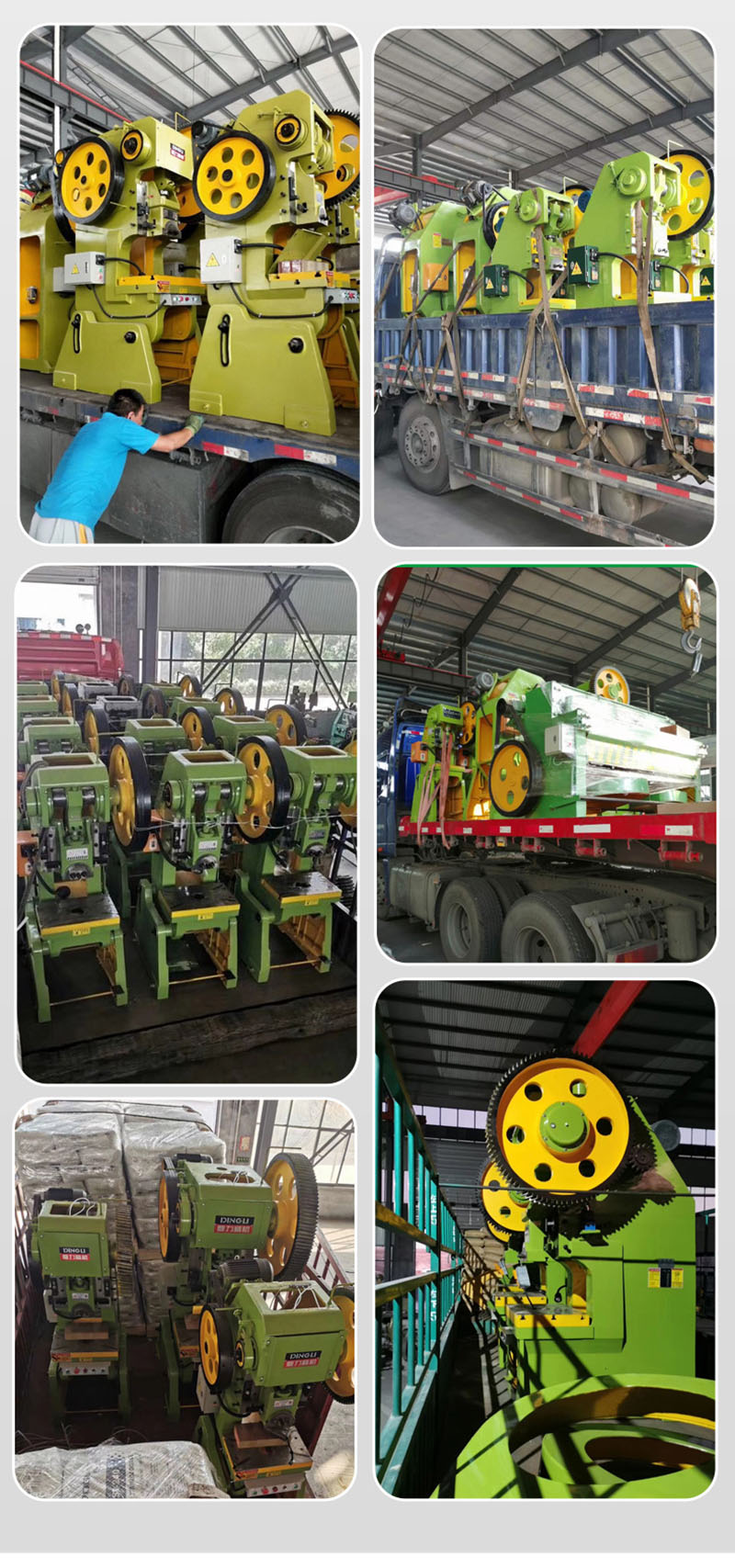

Combined container transport, or separate container transport.

Lead time:

Quantity(sets)	0 - 1	>1
Lead time (days)	45	To be negotiated

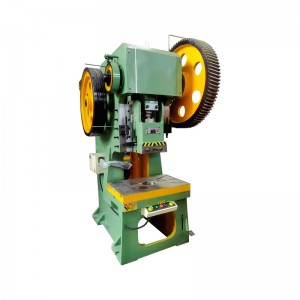

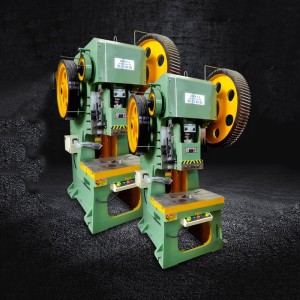

JB23 - 80 ton Mechanical punch machine

Description

Product Advantages

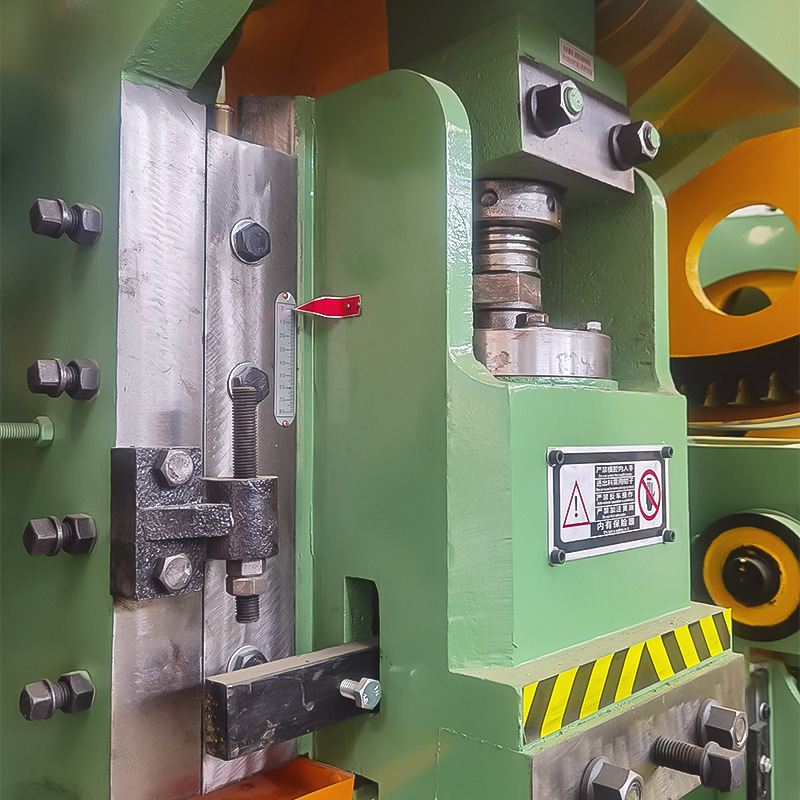

1.Hydraulic overload protection device , Responsive ,Reliable action

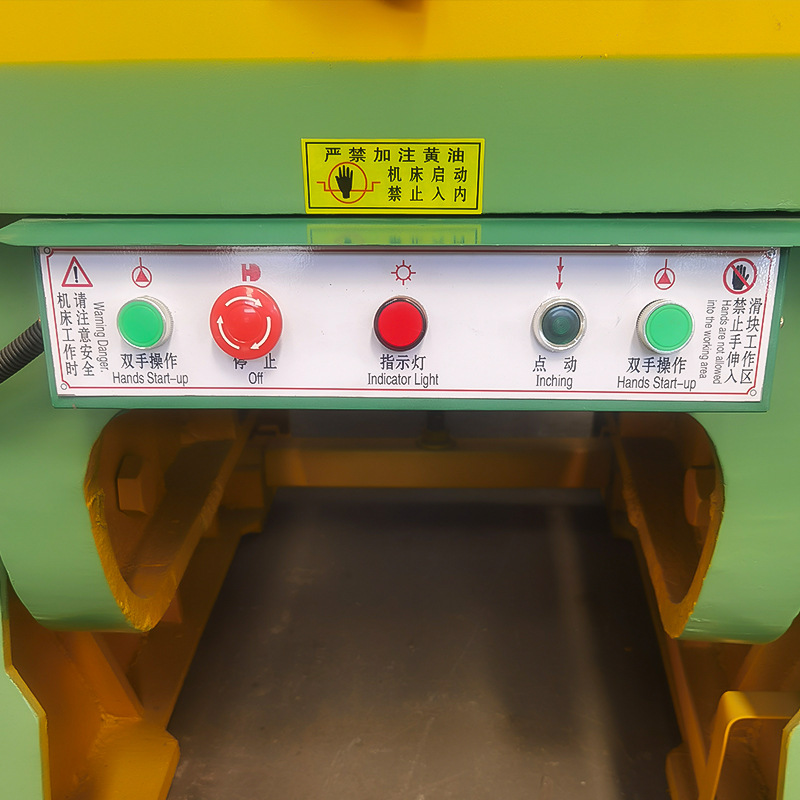

2.Adopt PLC electrical control system .

3.Closed gear trans-mission,Smooth trans-mission, Low noise.

4. Apolegamic :Air cushion , automatic mold adjustment , quickly change device , photoelectric protection,Automatic feeding , and Gearshift.

Application Fields

Punching machine is suitable for the realization of various cold stamping processes such as blanking, punching, forming, bending, and shallow drawing.

Widely used in electrical appliances, vehicles, tractors, mining machinery, hardware tools, machinery manufacturing and other industrial fields.

Specification

Type [Model]	63 T	80 T	125 T	160 T	200 T
nomal force ( KN)	630	800	1250	1600	2000
Ability occurrence point（mm）	4	5	5	6	6
slide stroke（mm）	120	140	160	180	200
max die set height（mm）	300	320	370	400	450
Number of stroke of slider（mm）	70	60	50	45	40
Mold height adjustment（mm）	80	80	100	110	110
throat depth（mm）	300	300	370	390	430
Slider surface size（mm）	400×480	420×560	520×620	580×700	650×880
bed dimension（mm）	900 ×580	1000 ×580	1120 ×720	1200 ×760	1400 ×840
The main motor（mm）	5.5×6	7.5×4	11×4	15×6	18.5×6
