Tire press machine with gas motor hydraulic press machine in China
Essential details
| Machine Type:Tire press machine | Return Force (kN):100 kN |
| System:Normal | Condition:New |
| Place of Origin:China | Brand Name: Cowardson |
| Weight (T):4 T | Motor Power (kw):5.5 kw |
| Key Selling Points:Easy operate | Warranty:1 Year |
| Marketing Type:New Product | Machinery Test Report:Provided |
| Video outgoing-inspection:Provided | Warranty of core components:1 Year |
| Core Components:Bearing, Motor, Pump, Pressure vessel | Power Source:Hydraulic |
| After sale service:Engineers available to service overseas | Type:Single Columns |
| Certification:CE |
Packaging & delivery
Packaging Details
1.press machine surface with anti-rust treatment,
2.machine inner layer of plastic waterproof packaging,
3.The outer layer of thick wood or steel frame fixed,And then use a synthetic board package.
Combined container transport, or separate container transport.
Lead time:
| Quantity(sets) | 0 - 1 | >1 |
| Lead time (days) | 45 | To be negotiated |

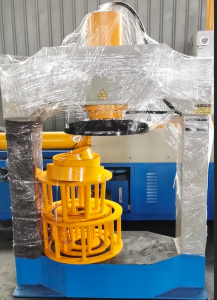

Tire press machine
Description
Product Advantages
1.Gantry hydraulic press frame design through the finite element design, with high rigidity, high precision
2.Workbench can move up and down, greatly expand the machine opening and closing height, more convenient to use
3.The worktable is welded with high quality steel plate to ensure reliability and durability
Specification
| Project | 120 T | 160 T | 200 T |
| Stroke(mm) | 1100 | 1200 | 1500 |
| Span length(mm) | 500 | 500 | 600 |
| Worktable Size(mm) | 1200*600 | 1400*800 | 1700*1200 |
| Motor power(KW) | 5.5 | 7.5 | 7.5 |
| Oil pump displacement (ml / R) | 10 | 40 | 40 |
| Weight(kg) | 2000 | 2500 | 3000 |
Application Fields
1. It is mainly used for the replacement and installation of solid tires, which is convenient for tire manufacturers and dealers to carry out tire disassembly and assembly work and improve work efficiency.
2. The gantry column is welded by the rear wall channel steel, which has good bearing capacity, large tonnage, simple and convenient operation, high tire press-fit, high disassembly and assembly efficiency, long service life and good stability.
Details
Certificates
